Development of electric power monitoring system

Client

TONUS ELAST

Project date

20. August, 2020

Installation of electric meters and development of a monitoring system.

Tasks

  • According to the premises and electricity distribution plan submitted by the customer, develop electricity accounting groups
  • Prepare and coordinate the technical offer
  • Prepare the most economically advantageous offer for the current situation and requirements
  • Develop reports that meet the client’s requirements
  • Prepare a graphical analysis environment that meets the requirements of an energetic
  • Monitored values: voltage-U [V], current-I [A], active power – P [kw]), kilowatt hours – E [kWh]), Frequency v [hz])

Solutions

  • Develop a specialized and customized Energy Monitoring System based on ECAVA IGX
  • Use SENECA S604 series analyzers with Modbus RTU / TCP

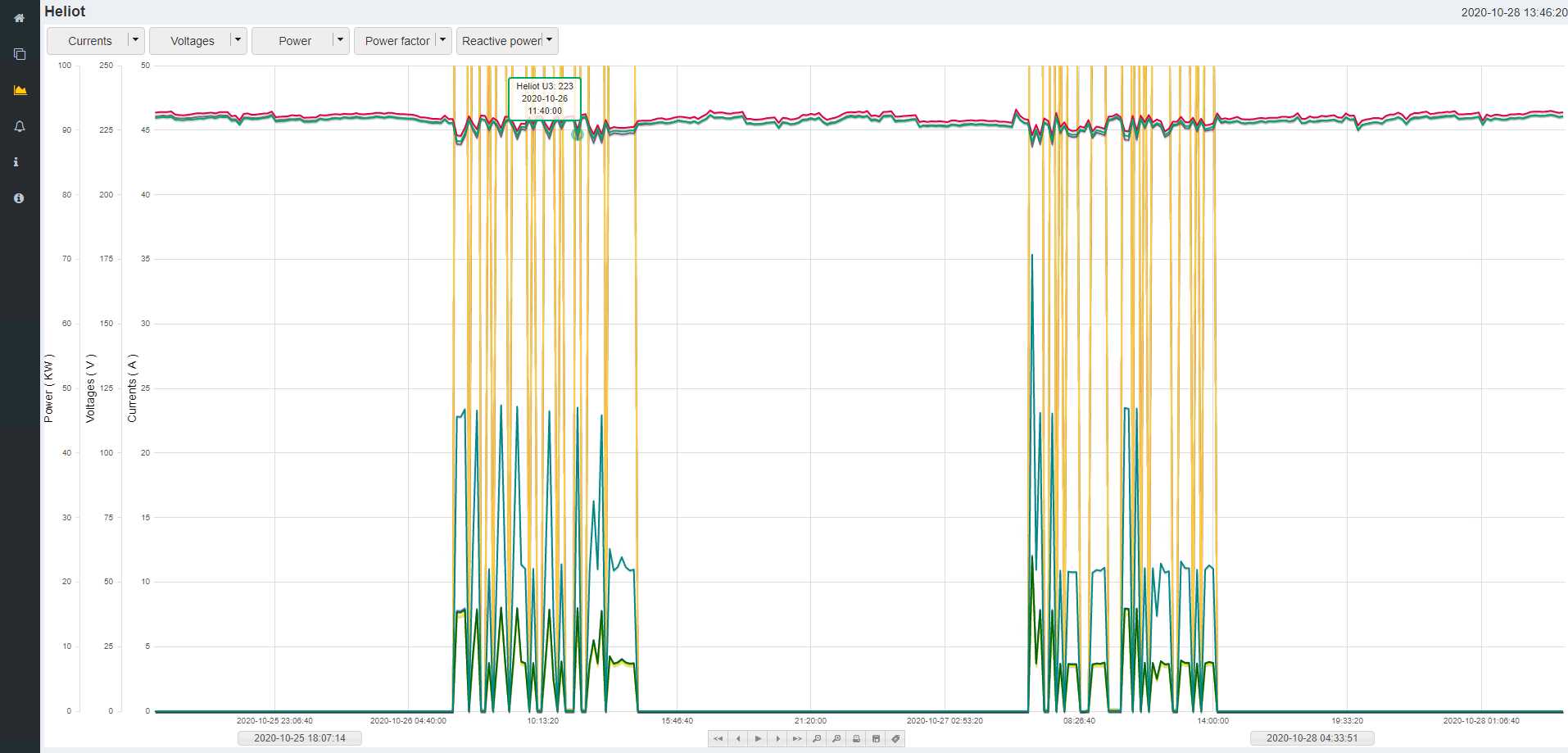

  • Ensure continuous data monitoring
  • Fully adapt the system and its operation to the customer’s needs
  • Install counters and start the system

Benefits

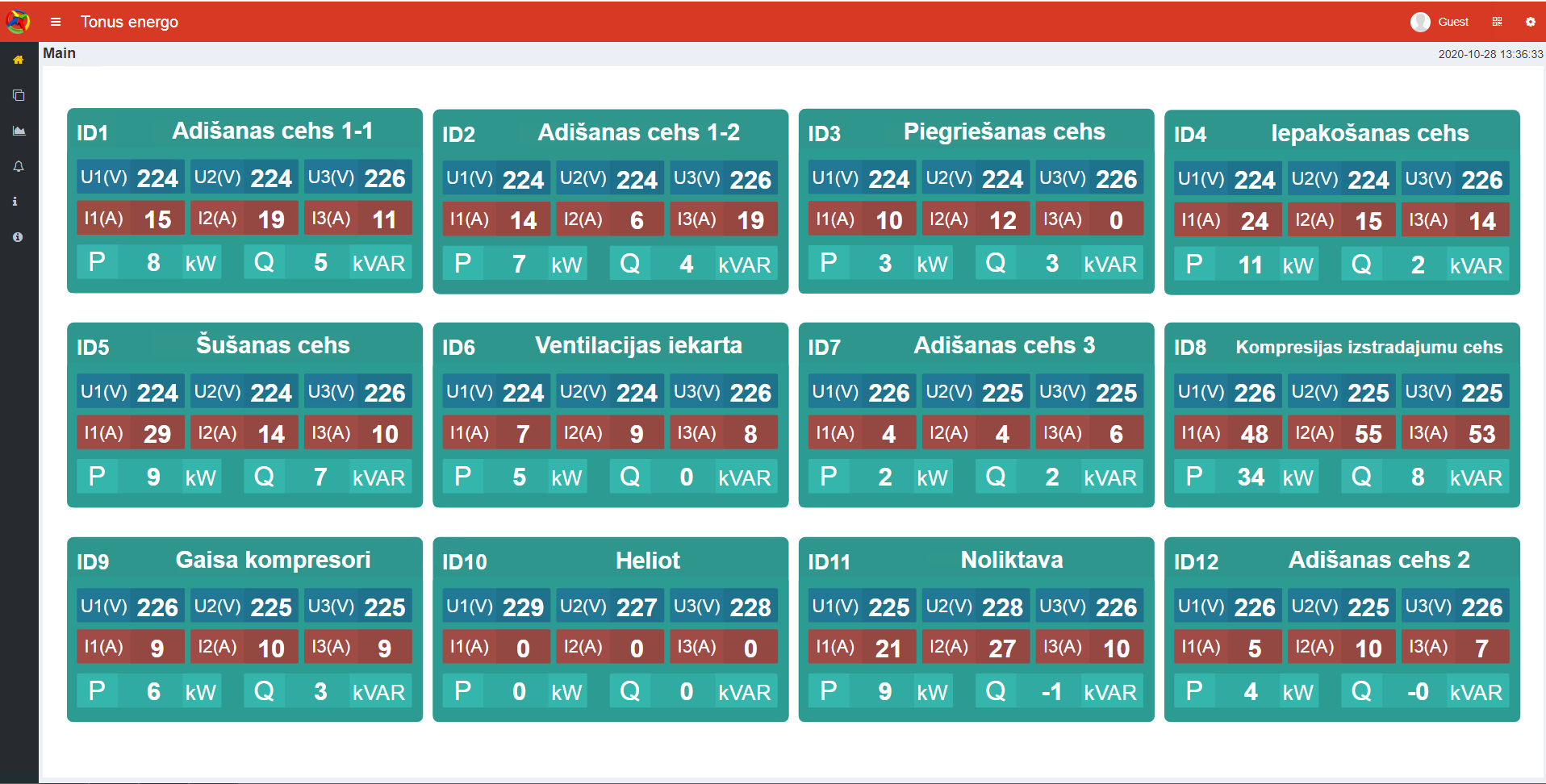

  • See up-to-date information about the factory’s energy supply system in a clear and simple way

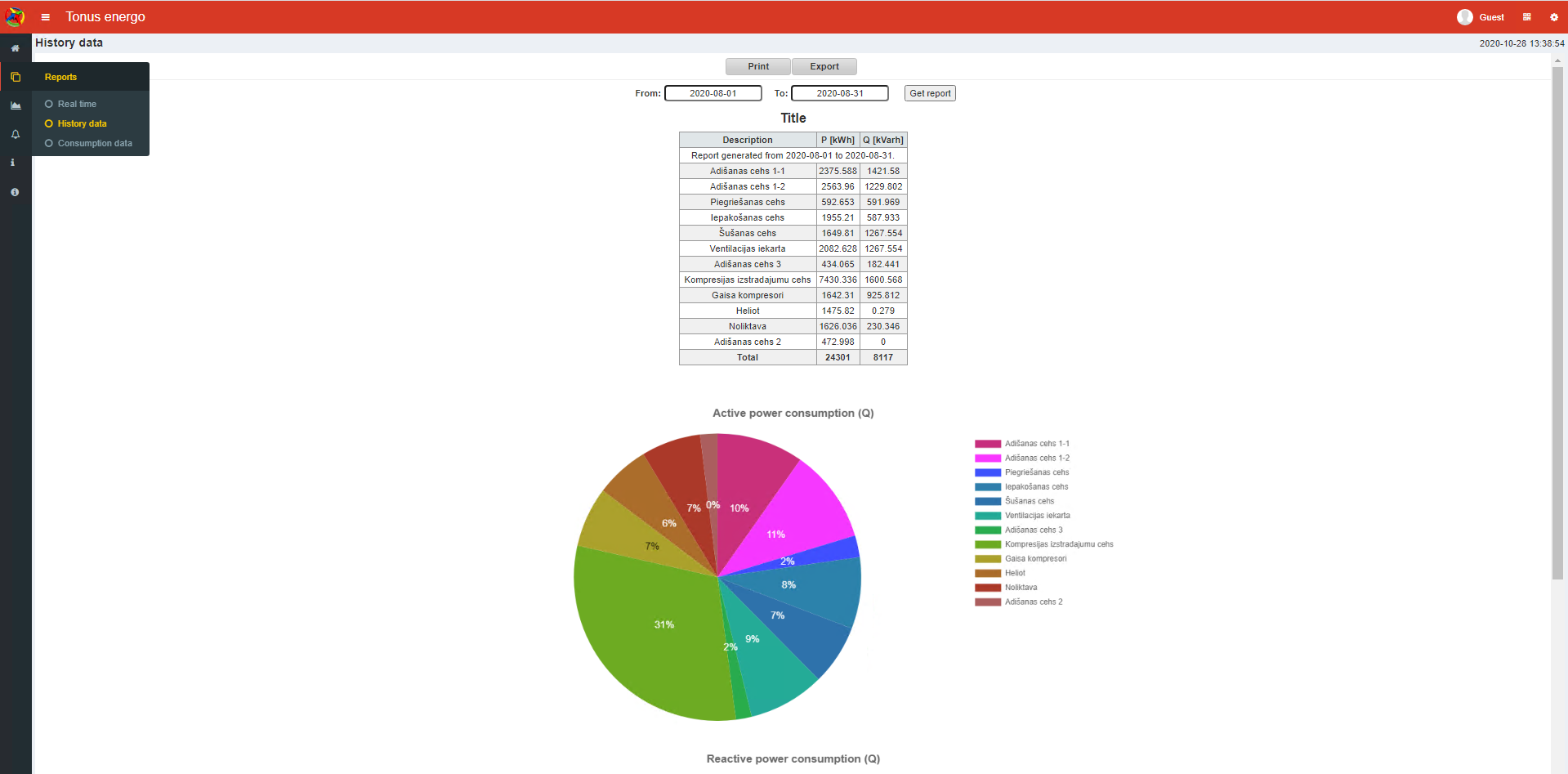

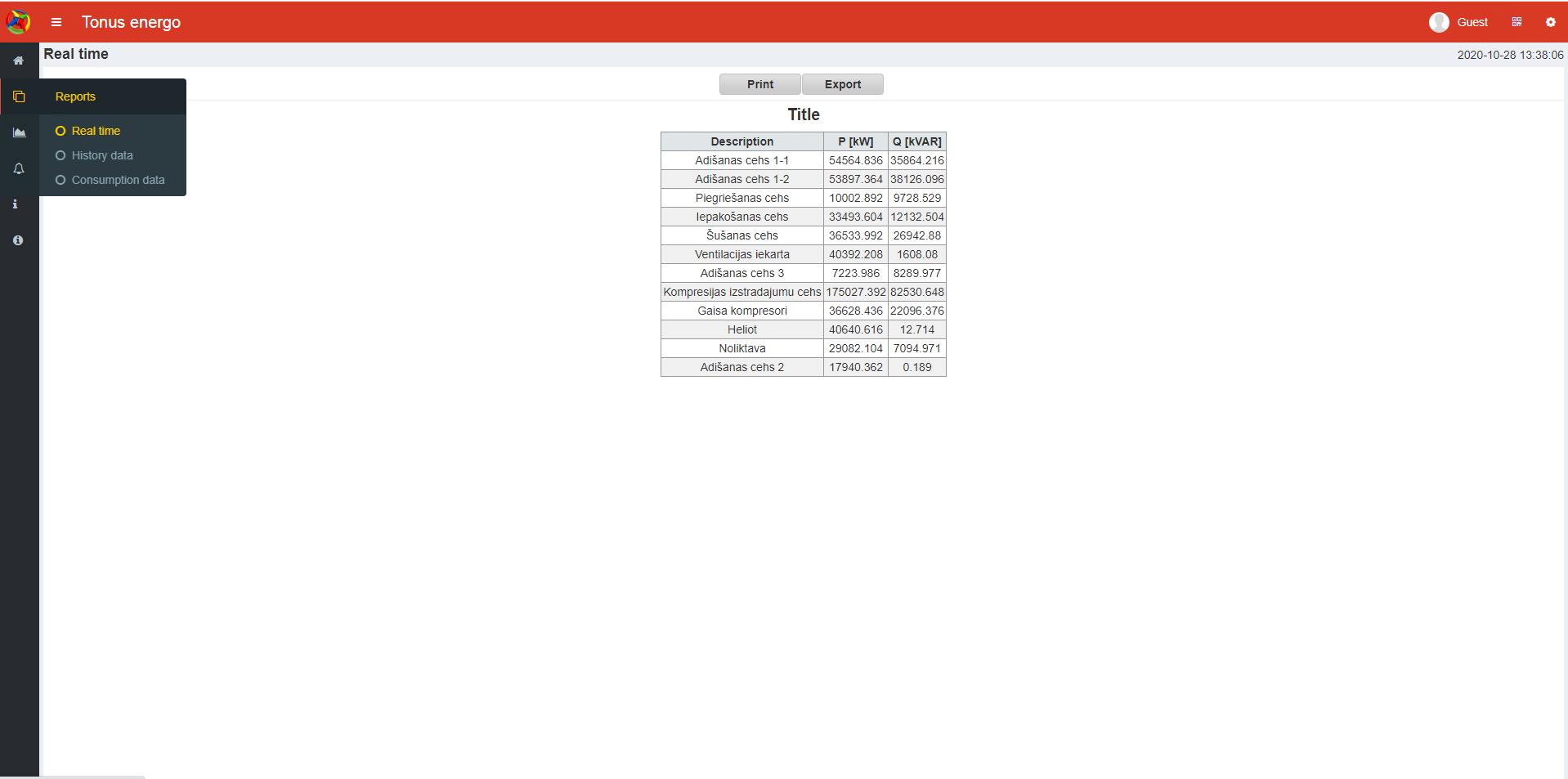

  • Quick and convenient reporting on request

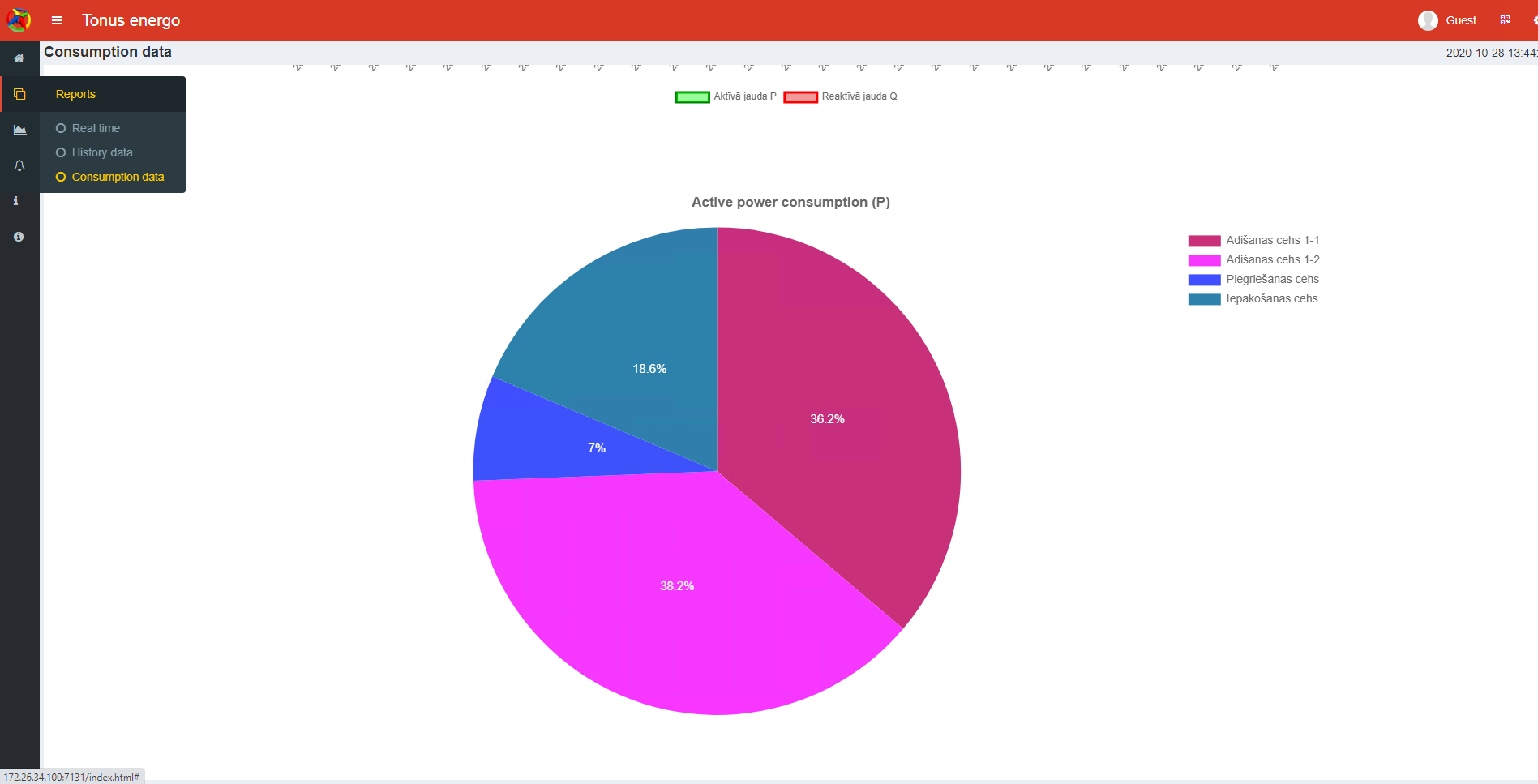

  • Easy creation of detailed analysis
  • Stable system operation and support
  • Possibility to add additional monitoring points to the system
  • It is not necessary to go to each meter to gather the readings
  • Data acquisition for ISO 50001 implementation and maintenance

Testimonial

We have been working with the company ZTF Lāsma since 2019. With the company's manager Lauri Bērziņš we met for the first time at the ZTF Lāsma stand at the international exhibition Tech Industry 2019.

In 2019, ZTF Lāsma executed two projects on behalf of SIA Tonus Elast: “Development, installation and commissioning of an electricity monitoring system” and “Installation of reactive power compensation equipment”. The work was done on time, without delays, qualitatively, in accordance with the project tasks, in positive and creative communication with the company's specialists, who quickly solved work tasks and were always ready to answer our questions.

After the implementation of the reactive power compensation equipment installation project, we no longer have regular costs for reactive energy tg (f) in the monthly bills of the electricity supply operator - they are zero euros, and we forecast a reduction in total electricity supply costs from 3.3 to 3.6% per year. According to calculations, the installed compensator equipment will pay off in 2.5 - 3 years. Prior to the installation of compensating equipment, the coefficient tg (f) exceeded the threshold of 0.4 on average each month due to the use of technological equipment in the company, but after the installation of compensating equipment it decreased to an average level of 0.19-0.2.

The performed works and the achieved goals for 2019 helped SIA Tonus Elast to fully implement the requirements of the ISO 50001 standard, increase energy efficiency and receive the Energy Management System Certificate 50001: 2018.

We highly appreciate the cooperation with ZTF Lāsma - a company that together with us promotes the company's competitiveness and production efficiency.

TONUS ELAST
Vladimirs Kazgunovs
Technical Director
