Chip tank level control

Client

Kokpārstrāde 98

Project date

13. October, 2020

Planer wood chip level control using rotary level switches.

Tasks

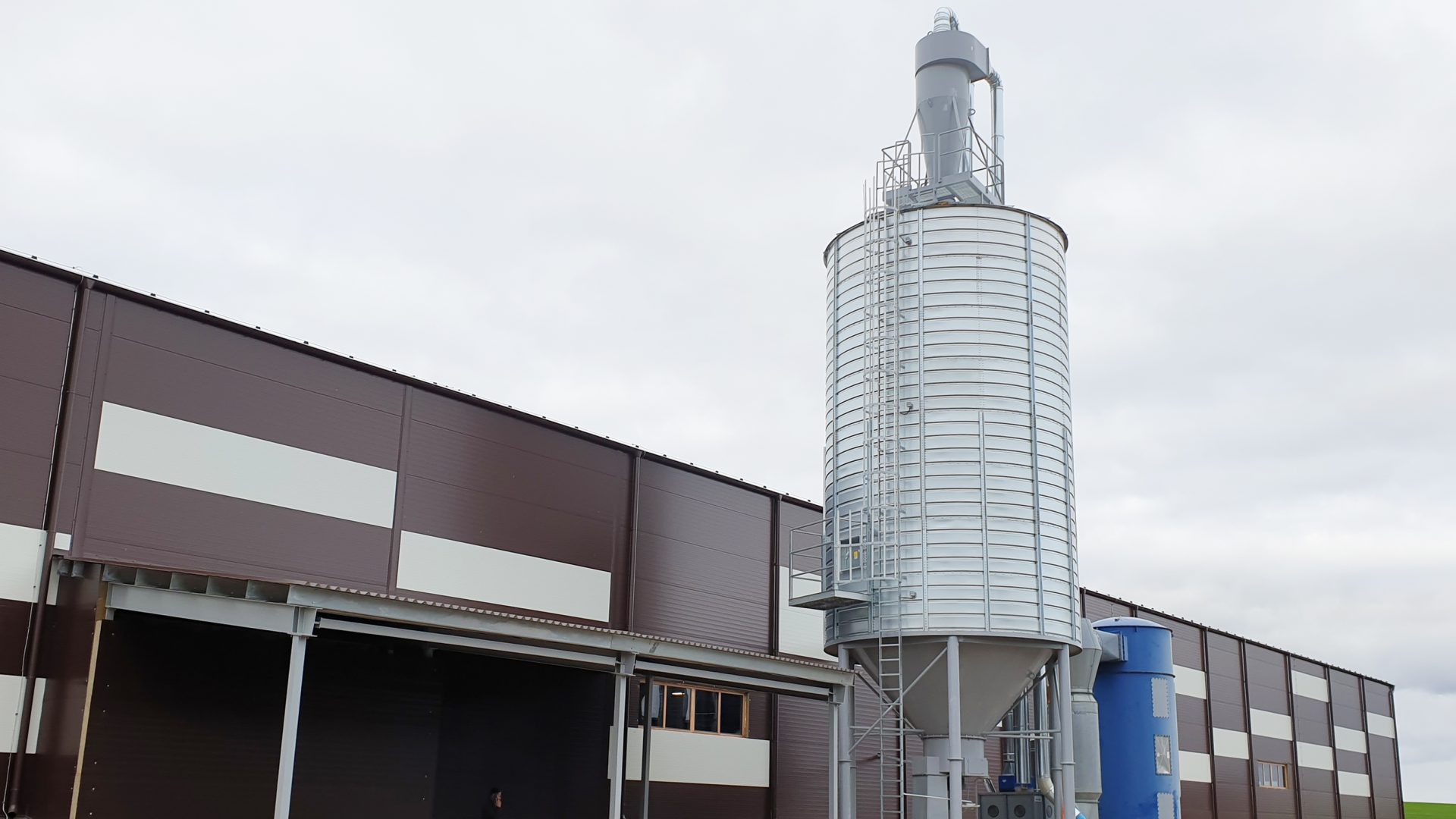

  • Determine the filling of the wood chip tank / silo after the three level marks MIN / MAX / Alarm
  • Signal the current level mark on the control panel and at the planer operator
  • Give an alarm signal to the planer control system

Solutions

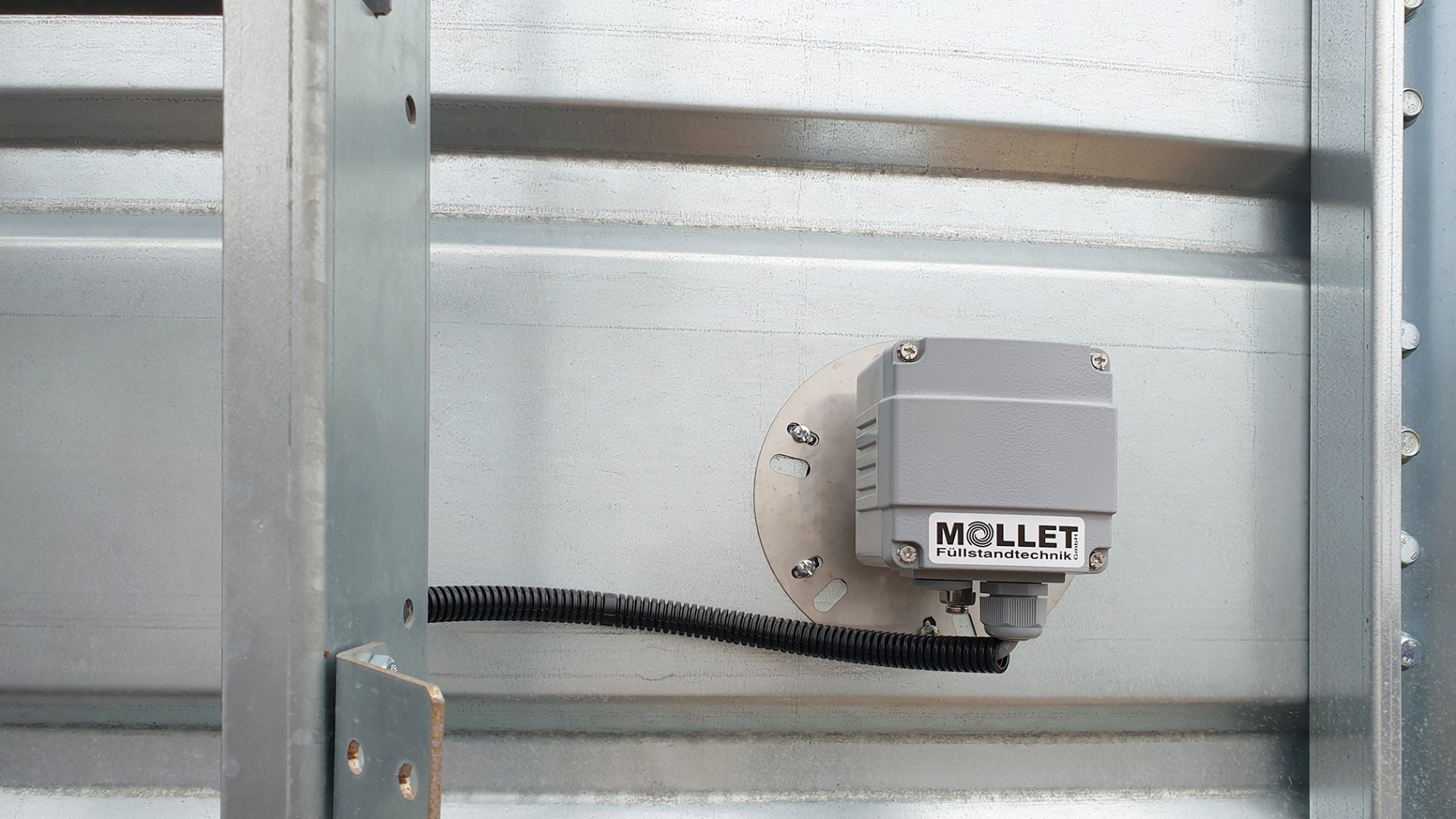

  • The tank is equipped with 3 x Mollet DF11 rotary level switches at the appropriate heights

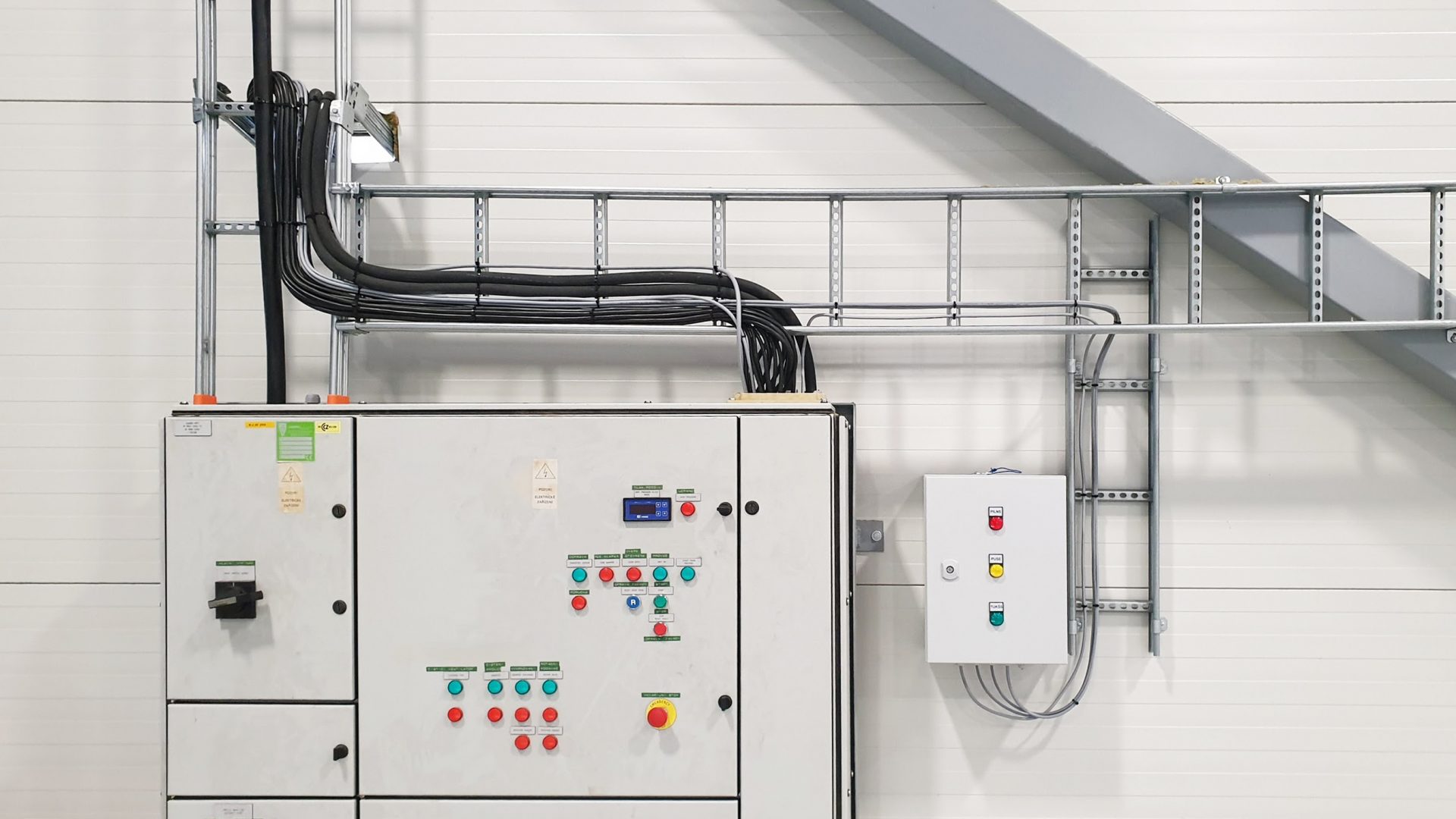

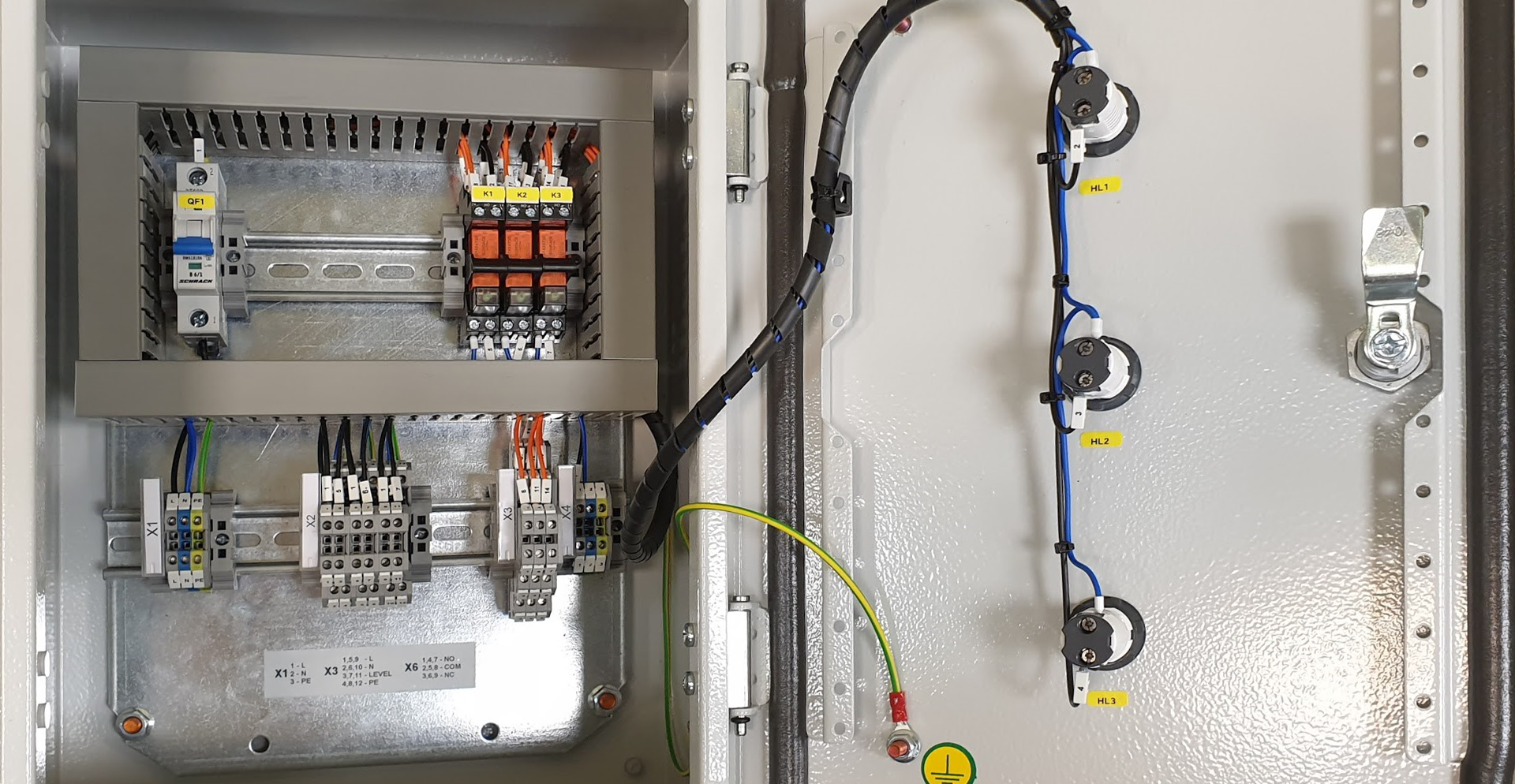

  • Installed indoor control switchboard
  • Level indicator lamps installed on the switchboard door
  • Mounted light tower on the planer with a green, orange and red signal
  • Prepared connection point for an alarm signal to the planer control system

Benefits

  • The planer operator can inform staff about the need to empty the tank in time
  • The planer will not be affected by clogged exhaust pipes
  • No need to waste time and resources cleaning pipes

Testimonial

Company "Kokpārstrāde 98" LTD is the largest producer of wooden slats and decorative interior decoration materials in Latvia. The use of highly developed woodworking equipment and production equipment in the company allows us to export our products to numerous countries, where the quality of our products, fast production and delivery times and, last but not least, the ability to adapt to customer needs is highly appreciated. Our approach is continuous development and improvement of production. These include the automation of operations to achieve higher production efficiencies and set new ambitious targets.

We have been cooperating with the company ZTF Lāsma for several decades and during this time we have implemented several projects together. One of the most important is the centralized Energy Resources Monitoring System, which was installed, maintained and developed by the LĀSMA team. We highly appreciate the professional approach to the tasks assigned to the work, which allows us to be sure that they will always be performed qualitatively, operatively and in accordance with our requirements.

Kokpārstrāde 98
Alvis Kokins
